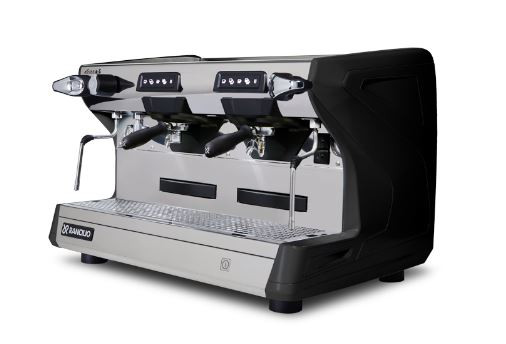

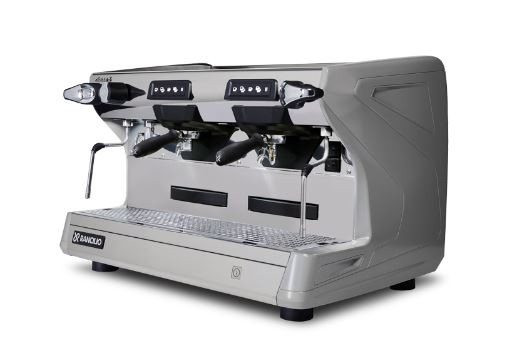

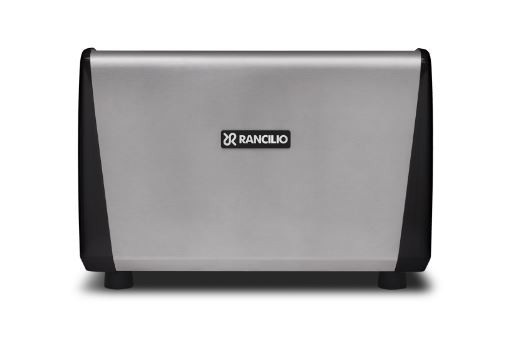

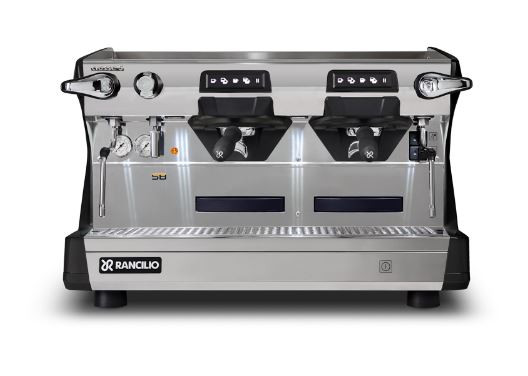

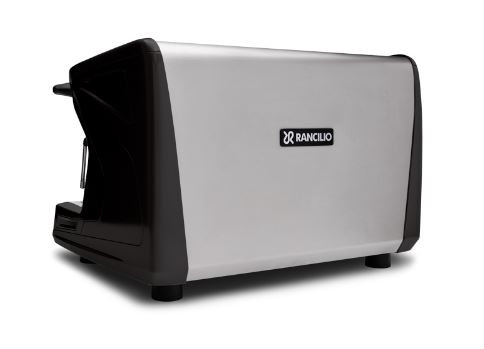

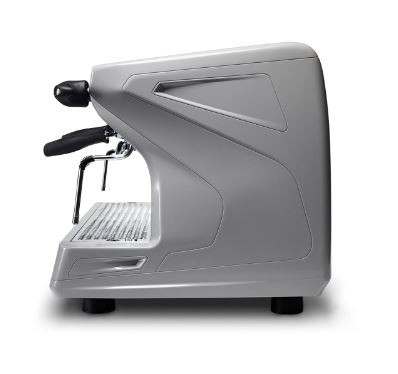

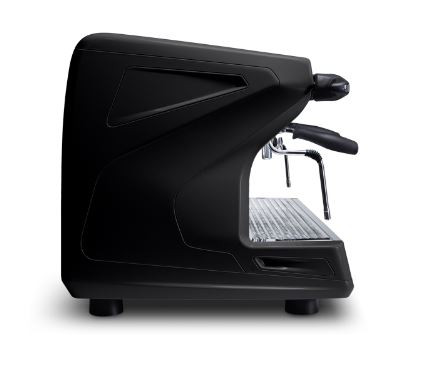

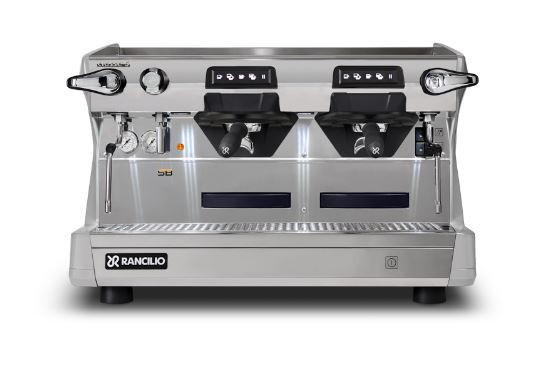

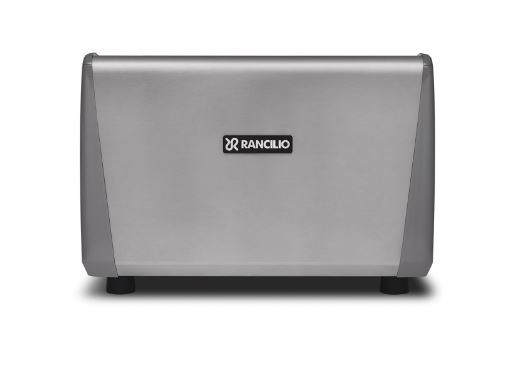

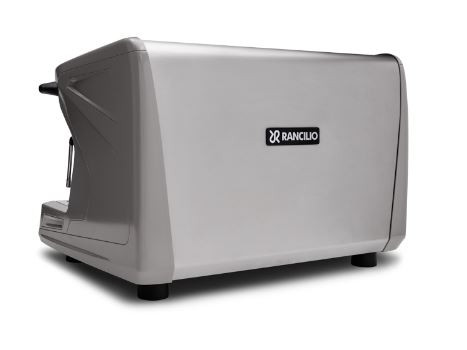

Classe 5 USB Tall

Single-boiler espresso machine available in 1, 2, 3 groups or 2 groups compact (2GRC). All versions feature raised groups and automatic dosing (USB). Steady Brew (SB) technology is available for all versions, except 1GR and 1GR TALL.

Dimensions

• Width771 mm / 30.35 inch
• Height520 mm / 20.47 inch
• Depth539 mm / 21.22 inch
• Weight74 kg / 163.14 lb
• Adjustable feetYes
• Max cup height145 mm / 5.70 inch

Brewing technology

• Steady Brew (SB)

  Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

• Brewing groupBrass

Water

• Hot water wand

Steam

• C-lever

  The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

• iSteam

  The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
  Rancilio Patented Technology.

• Steam wand

Power

• Power supply110V ~, 60 Hz 2.90 kW 220-240 V~/ 380-415 V3N~, 50-60 Hz 4.75 kW 208/220-240 V~, 60 Hz 4.00/4.95 kW
• Water supplyFixed water connection

Hydraulic circuit

• Main boiler capacity (steam)11 liter

Design

• Ergonomic Portafilter

  The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

• LED lights

• Tall

  This version has a taller working area and can accommodate cups up to 14.5 cm in height. It also features an extractable rise plate for traditional espresso cups.

Cleaning & maintenance

• Easy clean

  Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
  For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.

• Hydro Hub

• USB

Additional Optionals

• Connect

  Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.



• Cup Warmer

  The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

• Pods&Caps
