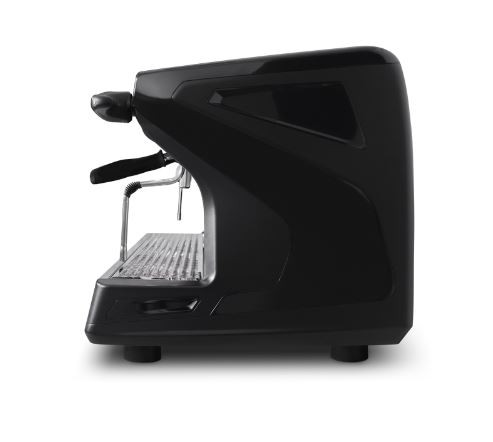

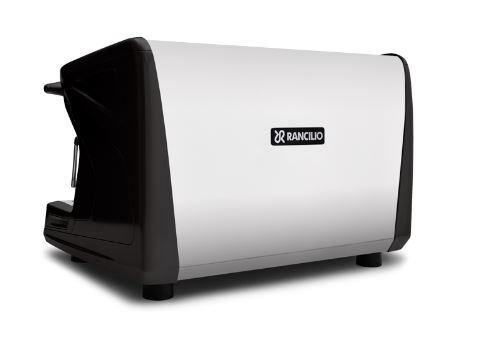

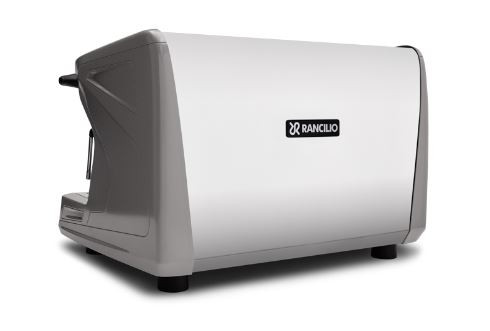

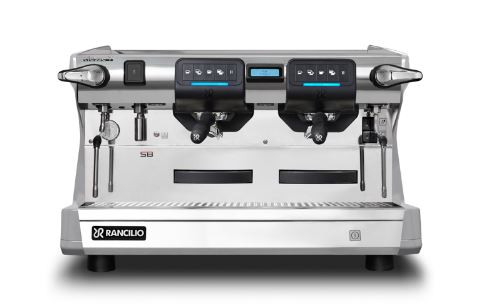

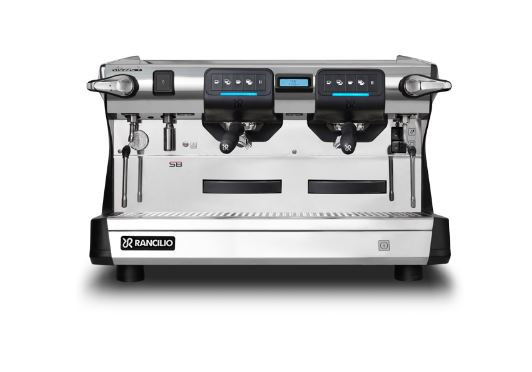

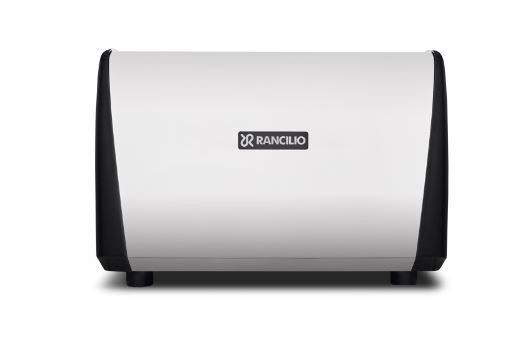

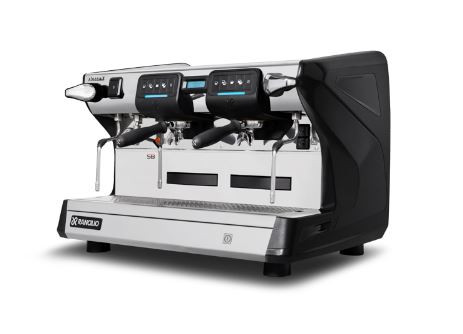

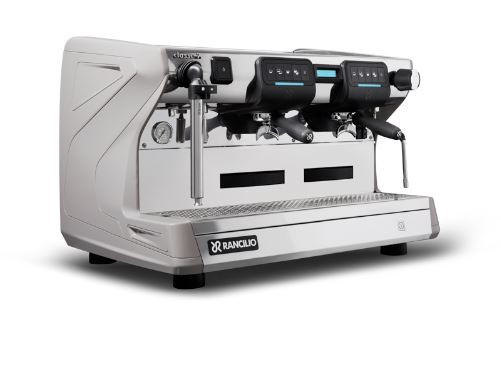

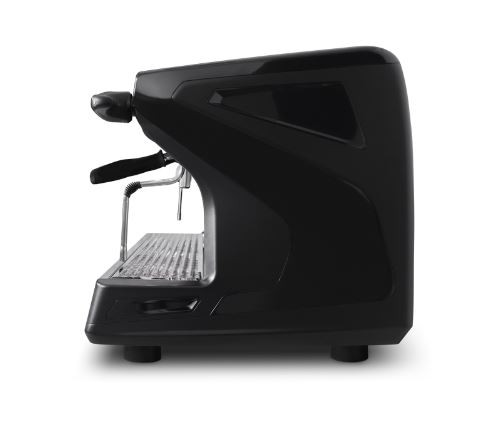

Classe 7 USB Tall

Single-boiler espresso machine available in 2 or 3 raised groups (TALL) with automatic dosing (USB) and Steady Brew (SB) technology.

Digital display

Digital display to control all coffee extraction parameters in real time.

Steady Brew (SB)

Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.
T-Switch

Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.

Hot Water Economizer
Hot water wand
X-Tea

Baristas can programme water dosages and temperature levels via the interface.
Rancilio Patented Technology

C-lever

The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.
Cool touch steam wand

The cool touch steam wand is thermally insulated with a double-layered protective coating.
iSteam

The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
Rancilio Patented Technology.
Steam wand

Power supply208/220-240 V~, 60 Hz 2.9 kW 220-240 V~/380-415 V3N~, 50-60 Hz 4.95 kW
Water supplyFixed water connection

Ergonomic Portafilter

The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.
LED lights

White LED lights positioned under the group heads provide excellent illumination for the work area.
RGB lights

The aesthetic RGB lights can be customised with different intensities and colours (Classe 20 only). The functional RGB lights on the group covers (Classe 11, Classe 7 USB) and above the control panel (Classe 9) help the operator to monitor the various states of the machine at a glance.
Tall

This version has a taller working area and can accommodate cups up to 14.5 cm in height. It also features an extractable rise plate for traditional espresso cups.

Auto ON-OFF

It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and the power-on hours (Classe 9, Classe 7) for each day of the week.
BM

BM controls the boiler pressure and, in case of a drop, automatically enables the heating element to return the pressure to the preset level. BM can also stop water from being dispensed until the boiler pressure has returned to a suitable level.

Easy clean

Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.
Hydro Hub
USB

Connect

Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.
Cup Warmer

The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.
Pods&Caps

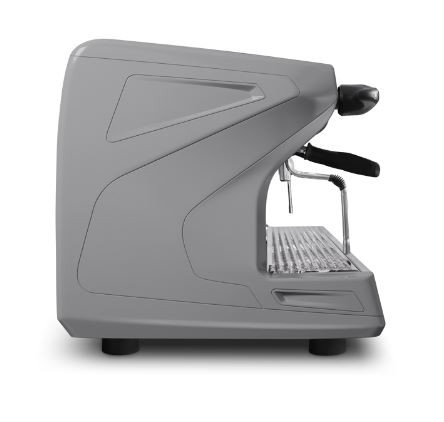

دستگاه اسپرسو دو گروپ رنچیلیو مدل CLASS 7 USB TALL
